(1) raw materials are steel coil, wire and flux. Strict physical and chemical tests should be carried out before the input.
(2) the connection of steel head and tail is made of single wire or double wire submerged arc welding. After rolling into steel pipe, automatic submerged arc welding is applied.
(3) before forming, strip steel is leveled, trimming and planing, surface cleaning and transportation and bending edge treatment.
(4) the electric contact pressure gauge is used to control the pressure of the two sides of the conveyor under the pressure of the cylinder, so as to ensure the smooth conveying of the strip.
(5) use external or internal control roll forming.
(6) the weld gap control device is adopted to ensure that the weld gap meets the welding requirements, and the pipe diameter, the wrong side quantity and the weld clearance are strictly controlled.

Specification

Product Details

Commodity	Competitice price / quality ERW/ SSAW / LSAW steel pipe pile
Outer diameter	ERW / HFW	LSAW / DSAW	SSAW / HSAW	RHS	SHS
	1/8 - 20 inch (10.3 - 508 mm)	12 - 56 inch (323.8 - 1,420 mm)	8 - 126 inch (219.1 - 3,200 mm)	40 x 20 mm - 1,000 x 800 mm	15 x 15 mm - 1,000 × 1,000 mm
Wall thickness	0.4 - 16 mm	6.0 - 40 mm	6.0 - 26 mm	1.0 - 30 mm	0.6 - 30 mm
Length	5.8 ~ 12.0 m or upon customers' requirements
Standard	GB/T 3091, GB/T 13793, ASTM A252, ASTM A53, ASTM A500, EN 10210, EN 10219, API 5L, DIN 1626/1615, DIN 17120, etc.

Grade	SS400, Q235, Q345, Q460, A572 Gr.50, A572 Gr.60, S235, S275, S355, Grade A/B, X42, X52, X60, X70, etc.

Surface	Prime quality (bared, oiled, color paint, 3LPE, or other anti-corrosive treatment)
Application	structure, electric power transmission tower projects, piling, water, oil & gas pipeline engineering, mechanical industry, municipal projects, roads and its auxiliary facilities, etc.

Packing	Standard export, in bulk / bundles / nylon fabric bags with seaworthy packing; or according to customers' requestments.

Delivery Time	1. 20-45 days after received deposit or confirmed L/C 2. Depends on your oder quantity

Payment Terms	1. T/T: 30% T/T advance, 70% balance copy of B/L 2. L/C: at sight 3. T/T and L/C: 30% T/T advance, 70% L/C


Port	China main port

FAQ

1.Q: Are you a factory or trading company?
A: We are professional manufacturer, and our company also is a very professional a trade company for steel products.We can provide a wide range of steel products.

2.Q:What do your factory do regarding quality control?
A: We have obtained ISO, CE and other certifications. From materials to products, we check every process to maintain good quality.

3.Q: Can I get samples before order ?
A: Yes, of course. Usually our samples are free. we can produce by your samples or technical drawings.

4.Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them. No matter where they come from.

5.Q:what is your delivery time ?
A: Our delivery time is about one week, timing according to the number of customers.

Consult our expert technicians today for professional solutions.

Chat Now

Technical Forms

Projects

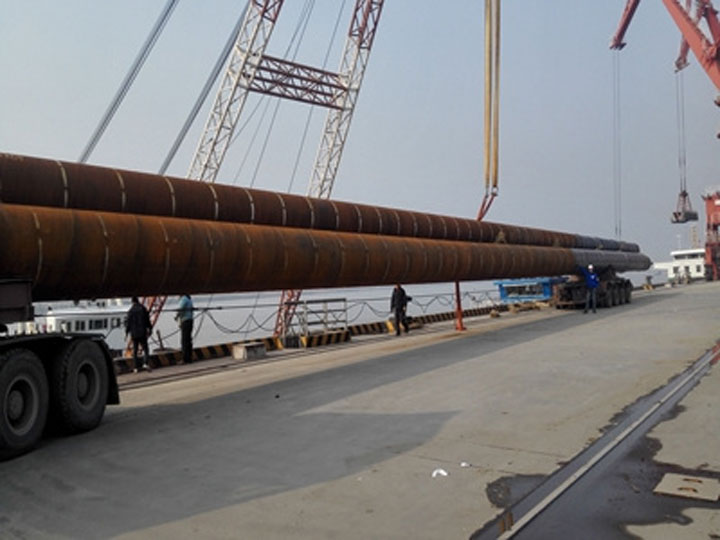

Steel Pipe Pile Application

Feb 07, 2023

Steel pipe piles are suitable for foundations in wharf and harbor construction, and their diameters generally range from 400-2000mm, with the most commonly used at 1800mm.
